Model 7962

The model 7962 is a six-line phone with a two-way speaker.

Each university department is charged monthly for the total number of phones being used in their department.


Model 7962 Charges: $35.00/phone.

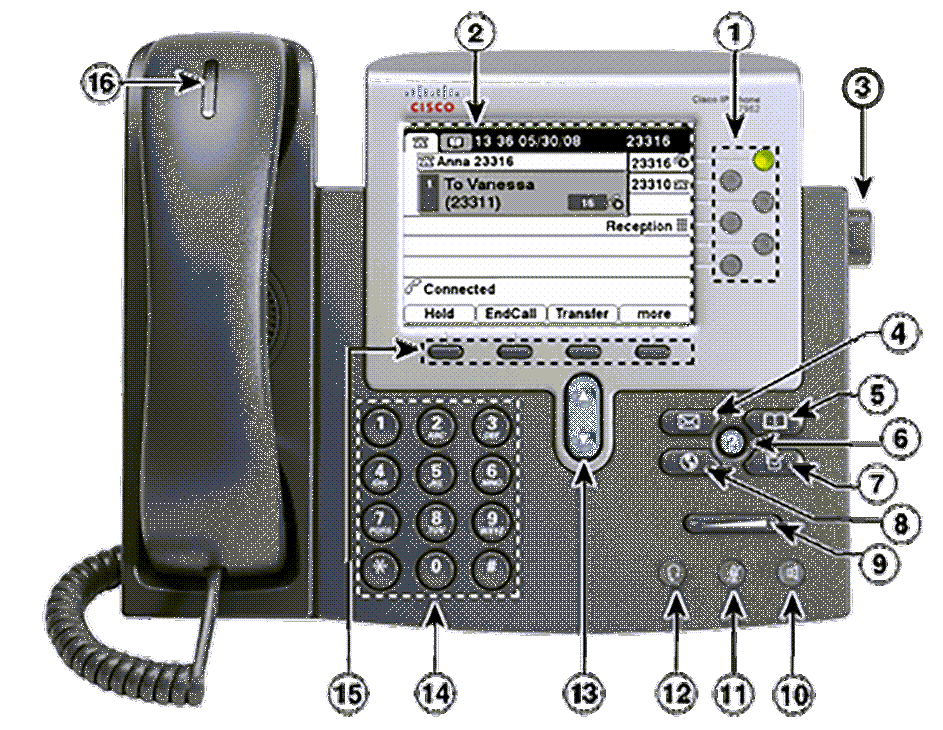

Diagram Number

Item

Description

1

 Programmable buttons

Buttons illuminate to indicate status:
 Steady Green: Active call or two-way intercom call

 Flashing Green: Held call

2

Phone Screen

Shows call features.

3

Footstand button

Enables you to adjust the angle of the phone base.

4

 Messages button

Auto-dials your voice message service (varies by service).

5

 Directories button

Opens/closes the Directories menu. Use it to access call logs and directories.

6

 Help button

Activates the Help menu.

7

 Settings button

Opens/closes the Settings menu. Use it to change phone screen contrast and ring settings.

8

 Services button

Opens/closes the Services menu.

9

Volume button

Controls the handset, headset, and speakerphone volume (off-hook) and the ringer volume (on-hook).

10

 Speaker button

Toggles the speakerphone on or off. When the speakerphone is on, the button is lit.

11

 Mute button

Toggles the microphone on or off. When the microphone is muted, the button is lit.

12

 Headset button

Toggles the headset on or off. When the headset is on, the button is lit.

13

 Navigation button

Enables you to scroll through menus and highlight items. When the phone is on-hook, displays phone numbers from your Placed Calls log.

14

Keypad

Enables you to dial phone numbers, enter letters, and choose menu items.

15

 Softkey buttons

Each activates a softkey option (displayed on your phone screen).

16

Handset light strip

Indicates an incoming call or new voice message.
