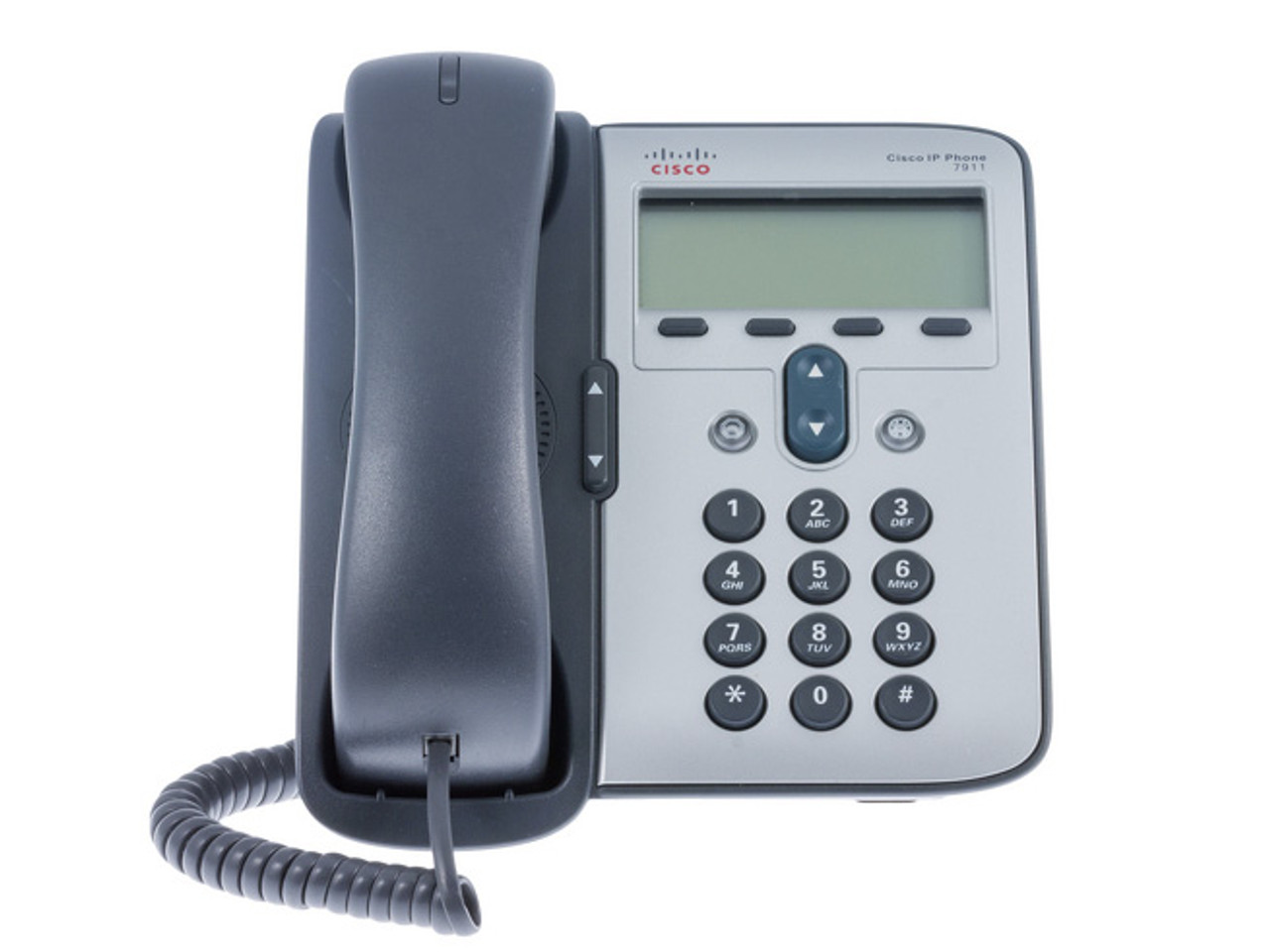

Model 7911


The model 7911 is a single line set with a one way speaker (when on the speaker the person on the other end can’t hear you).

Each university department is charged monthly for the total number of phones being used in their department.


Model 7911 Charges: $18.00/phone.

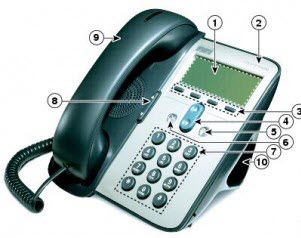

Diagram Number

Item

Description

1

Phone Screen

Displays phone menus and call activity including caller ID, call duration, and call state.

2

Cisco Unified IP Phone series

Indicates your Cisco Unified IP Phone model series.

3


Softkey buttons

Each activates a softkey option displayed on your phone screen.

4


Navigation button

Allows you to scroll through menu items and highlight items. When the phone is on-hook, displays your Speed Dials.

5


Applications Menu button

Displays the Applications menu that provides access to a voice message system, phone logs and directories, settings, services, and help.

6

 Hold button

Places the active call on hold, resumes a call on hold, and switches between an active call and a call on hold.

7

Keypad

Allows you to dial phone numbers, enter letters, and choose menu items.

8

 Volume button

Controls the handset, headset, speaker, and ringer volume.

9

Handset with light strip

The light strip on the handset indicates an incoming call or new voice message.

10

Footstand

Allows the phone to stand at a convenient angle on a desk or table.
